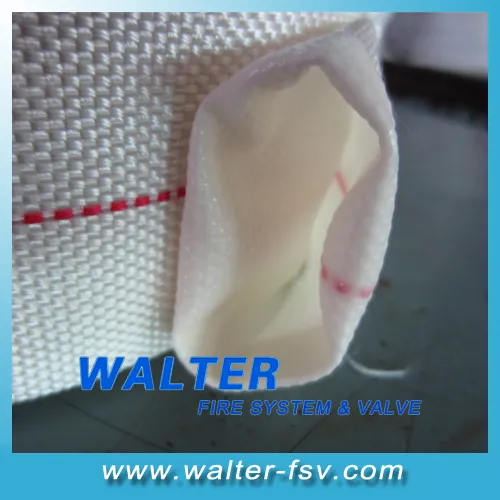

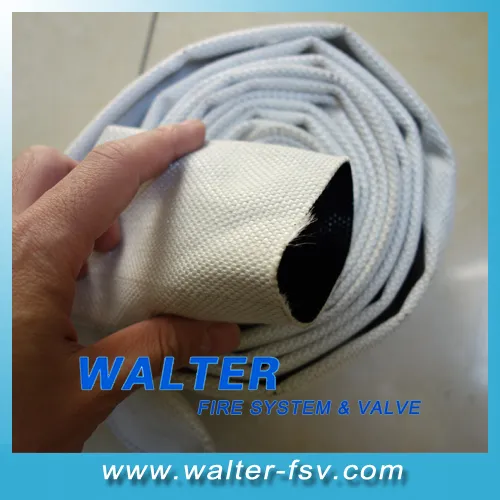

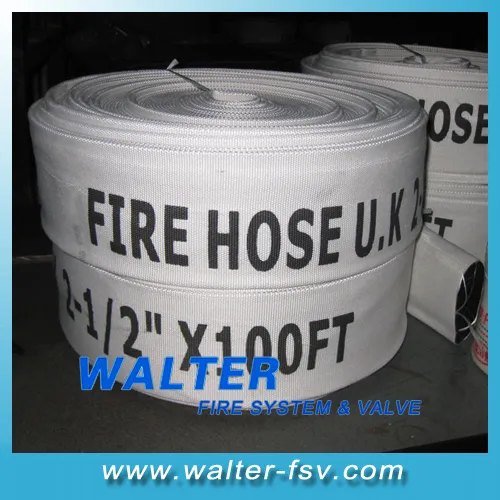

Storz Hose Coupling Fire Hose

Product Description

Storz Hose Coupling Fire Hose is mainly used in fire-fighting ,and help to delivery fire water to put out fire. it can be equipment with fire hose coupling and nozzle with fire hydrant system.

1- Lining : PVC / Rubber / PU / PVC Mixed Rubber
2- Jacket : High Tenacity Polyester Yarn or Fiber
3- Size : 1 Inch--10 Inch (DN25 - DN250)
4- Length : 10 Meter/Roll, 15 Meter/Roll, 18 Meters/Roll, 20 Meters/Roll, 25 Meter/Roll, 30 Meters/Roll, 40 Meters/Roll or acc. to customer requirements.
5- Working Pressure : 8-20 Bar
6- Bursting Pressure: 24 Bar - 60 Bar

Canvas Colored Fire Hose:
1. PVC/ Rubber/ PU/ PVC mixed Rubber Lining
2. The jacket of fire hose is woven by high intensity of polyester filament or polyester short-fiber.
3. There are special adhesive between the jacket and the hose. The hose is soft and highly polished to reduce the flow resistance.
4. Thinner and more soft, lighter and more convenient to use.
5. High pressure resistance, low temperature resistance, anti-corrosion, aging resistance, wear-resisting.
6. Different color lining we can provide: Blue, black, transparent, etc or according to your requirement.
7. The length we can provide: 10m - 30m or according to your requirement.

Storz Hose Coupling Fire Hose

Company Profile
Suzhou Walter Flow Control Equipment Co., Ltd. are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates
Walter products are design acc. to DIN, BS, ANSI, AWWA, EN, ISO,AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
Company Philosophy
Processing every enquiry efficiently
Treating every order seriously
Serving every customer considerately
Choose us, reap success

Diameter (Inch/mm)	Working Pressure (Mpa/Bar/PsiI)	Testing Pressure (Mpa/Bar/Psi)	Bursting Pressure (Mpa/Bar/Psi)	Length (M/Feet)
1 / 25	0.8/ 8/120 1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300	1.2/12/180 1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450	2.4/24/360 3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900	10 15/50 20 25 30/100
1-1/2 / 40
2 / 50
2-1/2 / 65
3 / 80
3-1/2 / 90
4 / 100
4.5 / 115
5 / 125
5-1/2 / 140
6 / 150
8 / 200
10 / 250
