Product Description

Heavy Duty Concrete 4PCS Fix Anchor Bolts with Grade 4.8 (M6*50/M8*60/M10*70/M12*90)

Product Description:

3pcs/4pcs heavy duty shield anchors
Heavy-duty anchor is for pre-positioned installation and push-through installation. When the bolt or hexagon nut is tightened, the cone is pulled into the expansion sleeve and expands it against the whole wall. Special tamper-proof fixing as protection against theft.
Available with Body, Open Eye Hook, Thread Rod, Closed Eye Hook

Technical Data

Name	Heavy Duty Shell Anchor
Material	Carbon Steel Q195, Q235 , Q255, Q275 or Stainless Steel 304/316
Dimension	M650,M860 , M10 70 , M1290 etc.(M6-M24)
Grade	4.8,6.8 ,8.8, 10.9,12.9etc.
Surface Treatment	zinc plated ,phosphorization,Dacromet plated etc.
Package	Single unit in small box+ strong caron+ pallet or according to customer'special demand
Application	Structural Steel, Building ,Oil& Gas, Tower & Pole, Wind & Energy, Mechanical Machine, Automobile, Home Decoration etc.
Capacity	1800tons monthly
Market	South & North Americans, Europe, Asia ,Africa ,Australia,Middle East
OEM	We also provide OEM sevice as customer require
Our Advantages	One-stop sevice Quality Ensured Reasonal Prices Timely delivery Technical support Free Samples available
Notice	Please advice the size, material , grade,surface & quantity to enable us calculate the price for you ;If it is the non-standard products,please provide the drawings or samples to us

Packaging

SIZE(MM)	PCS/BOX	PCS/CARTON
M6*50	100PCS/BOX	1200PCS/CTN
M8*60	50PCS/BOX	600PCS/CTN
M10*70	30PCS/BOX	360PCS/CTN
M12*90	20PCS/BOX	240PCS/CTN

Size	Drill[mm]	Min. Drill Hole Depth for Pre-fixing [mm]	Anchor Length [mm]	Thread [mm]
M6	10	65	49	M6
M8	12	70	56	M8
M10	15	90	69	M10
M 12	18	105	86	M12

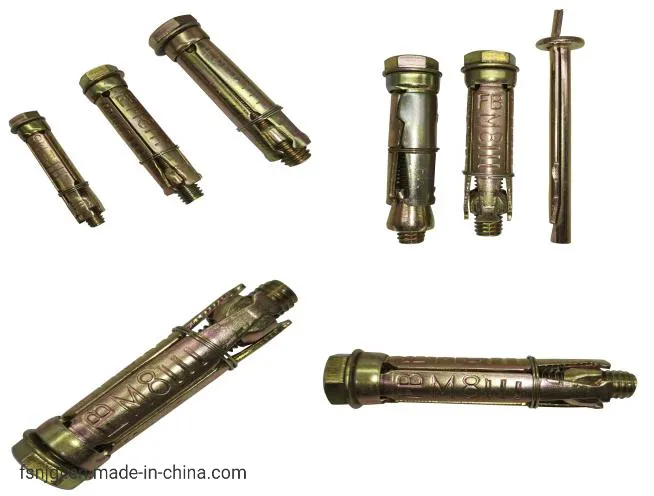

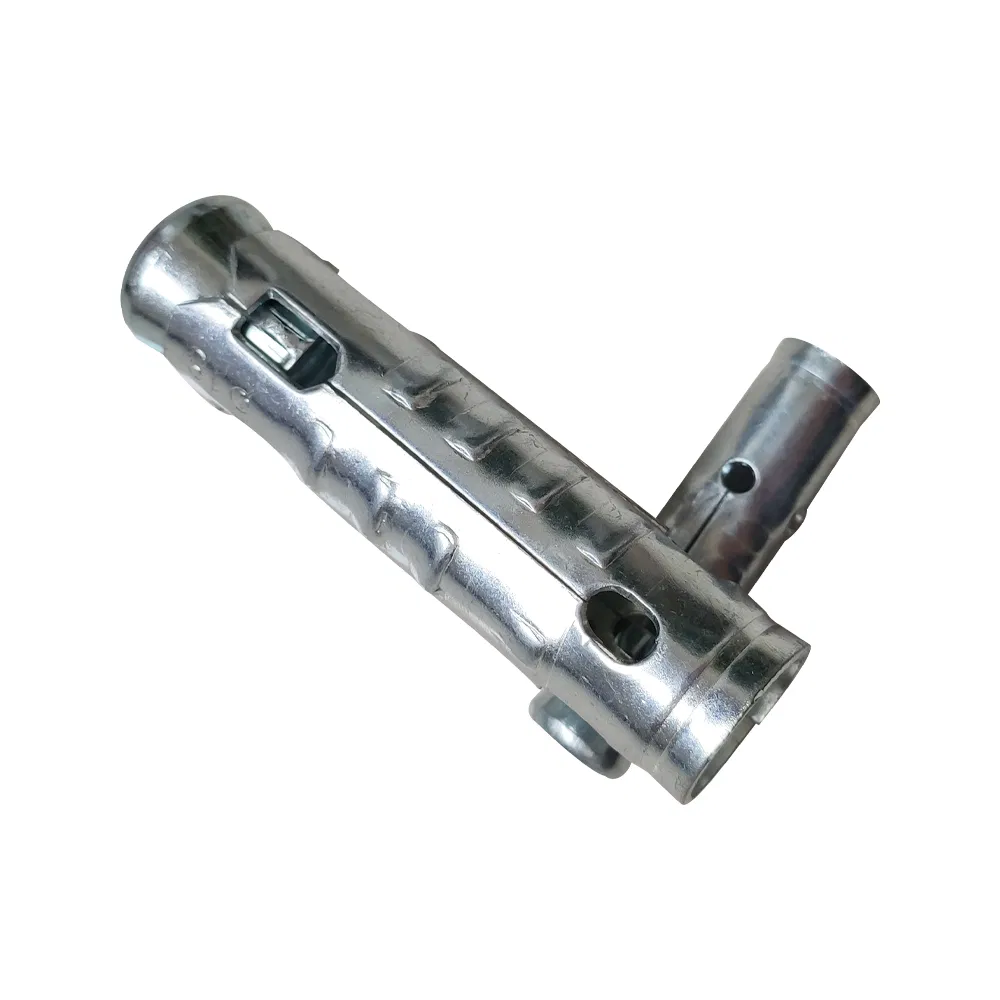

Photos Details of Heavy Duty Fish Scale Sleeve Anchor

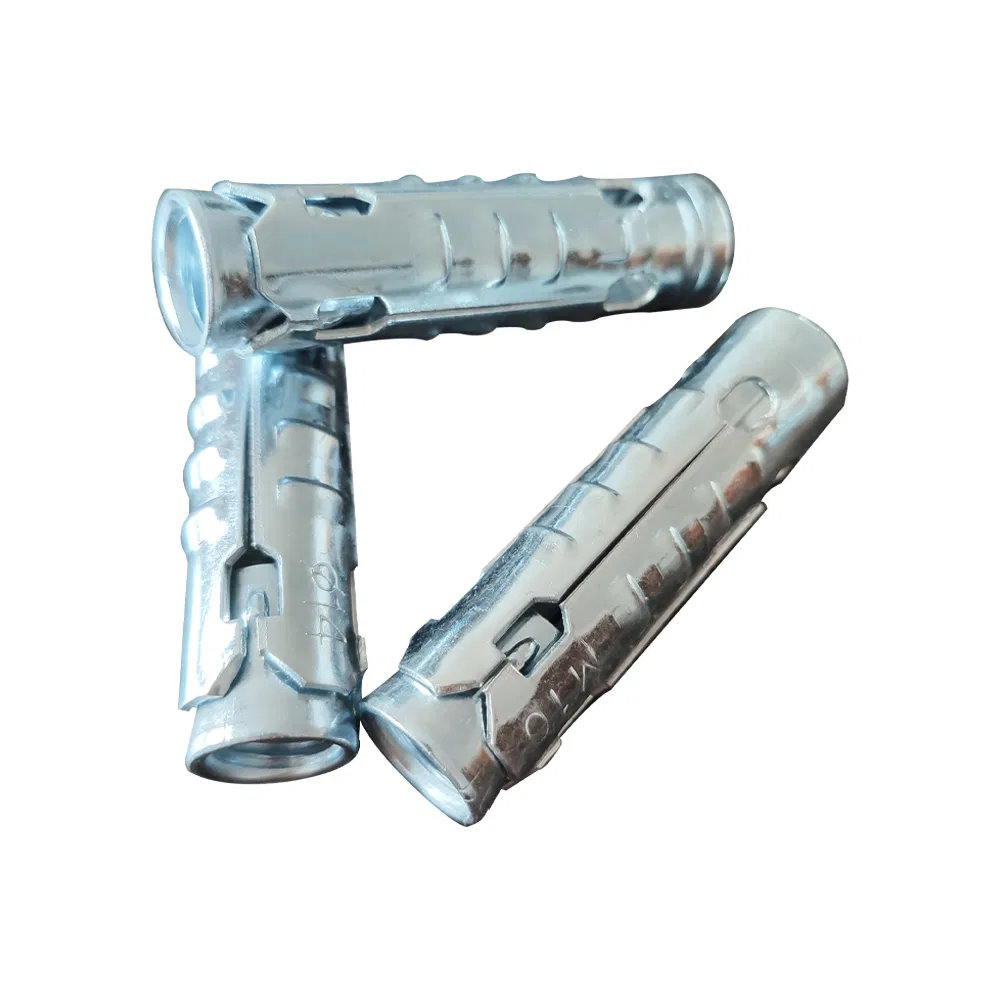

Concrete Fish Scale Shield Anchor with Grade 4.8

Packages:

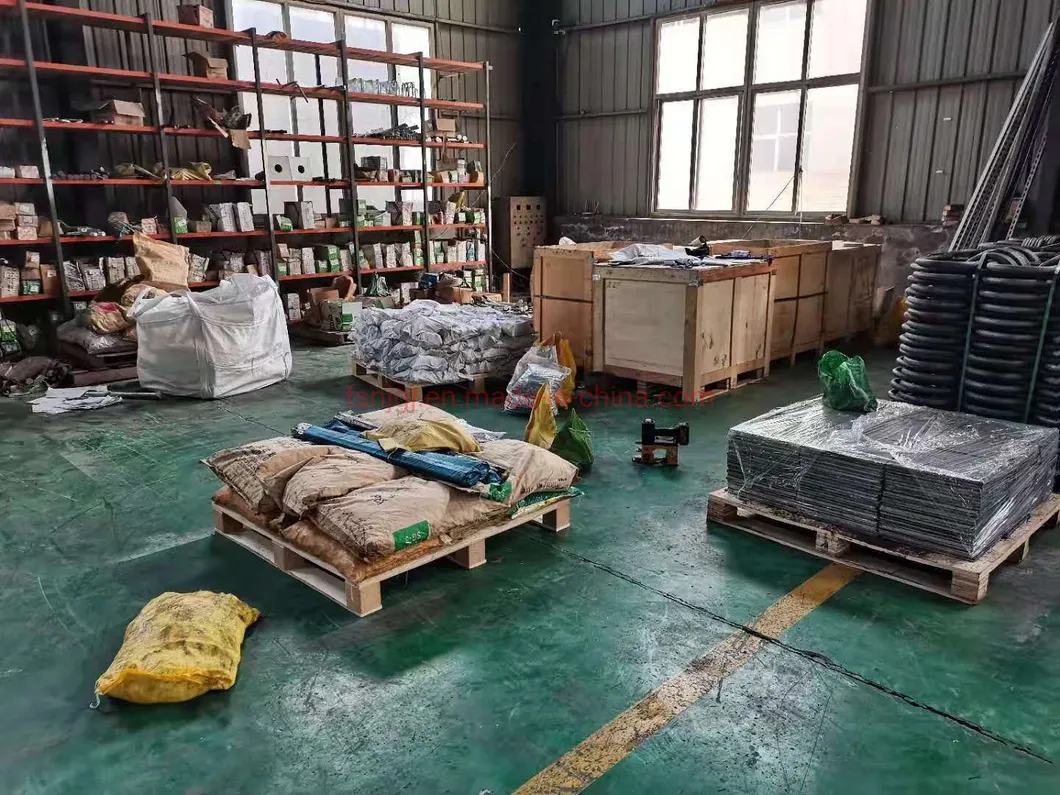

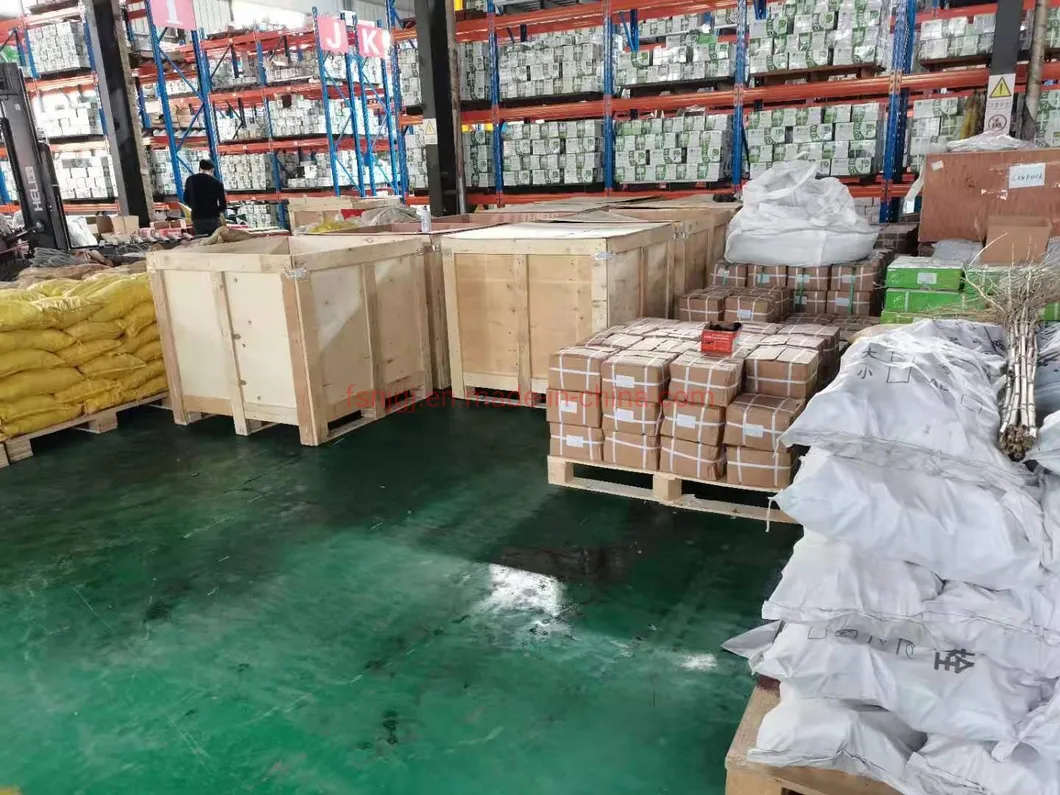

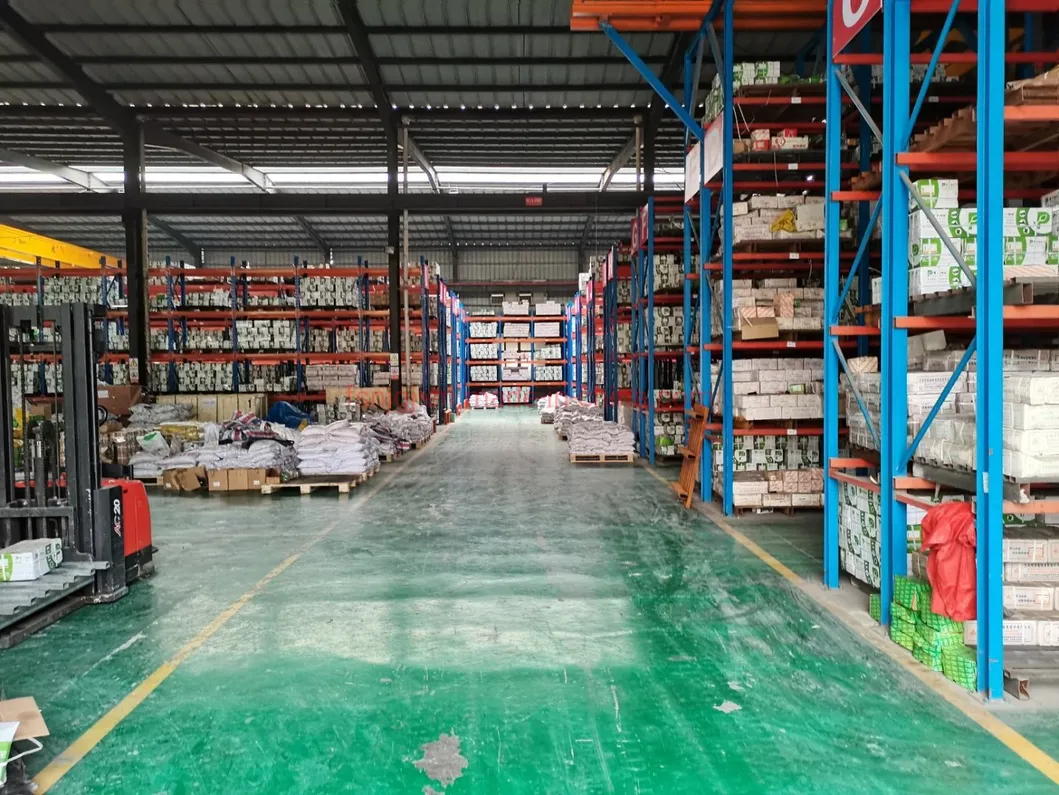

Factory & Warehouse

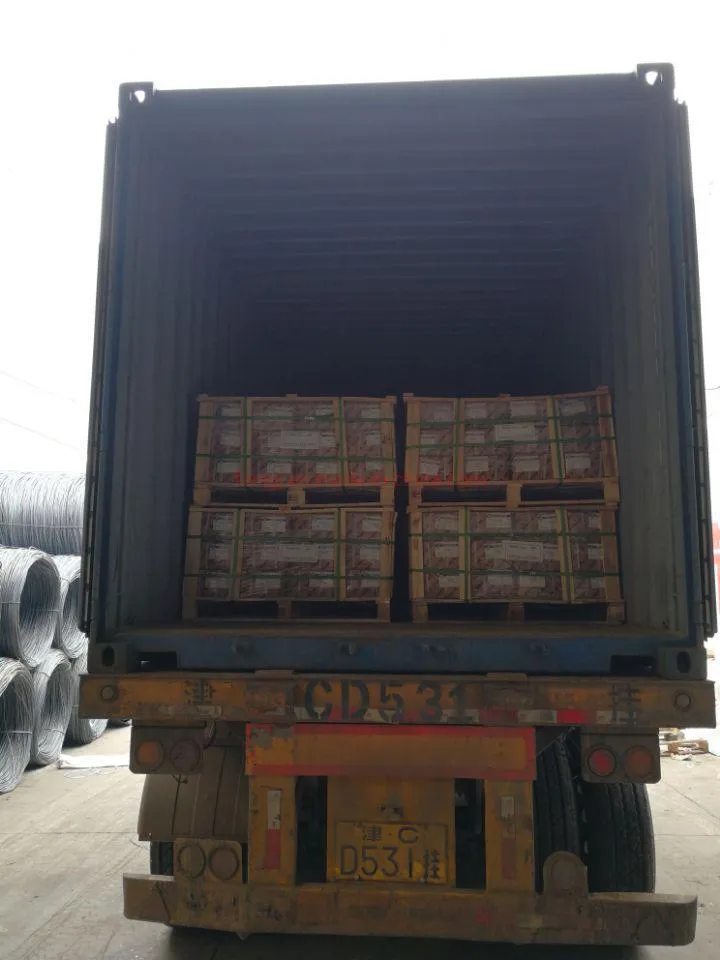

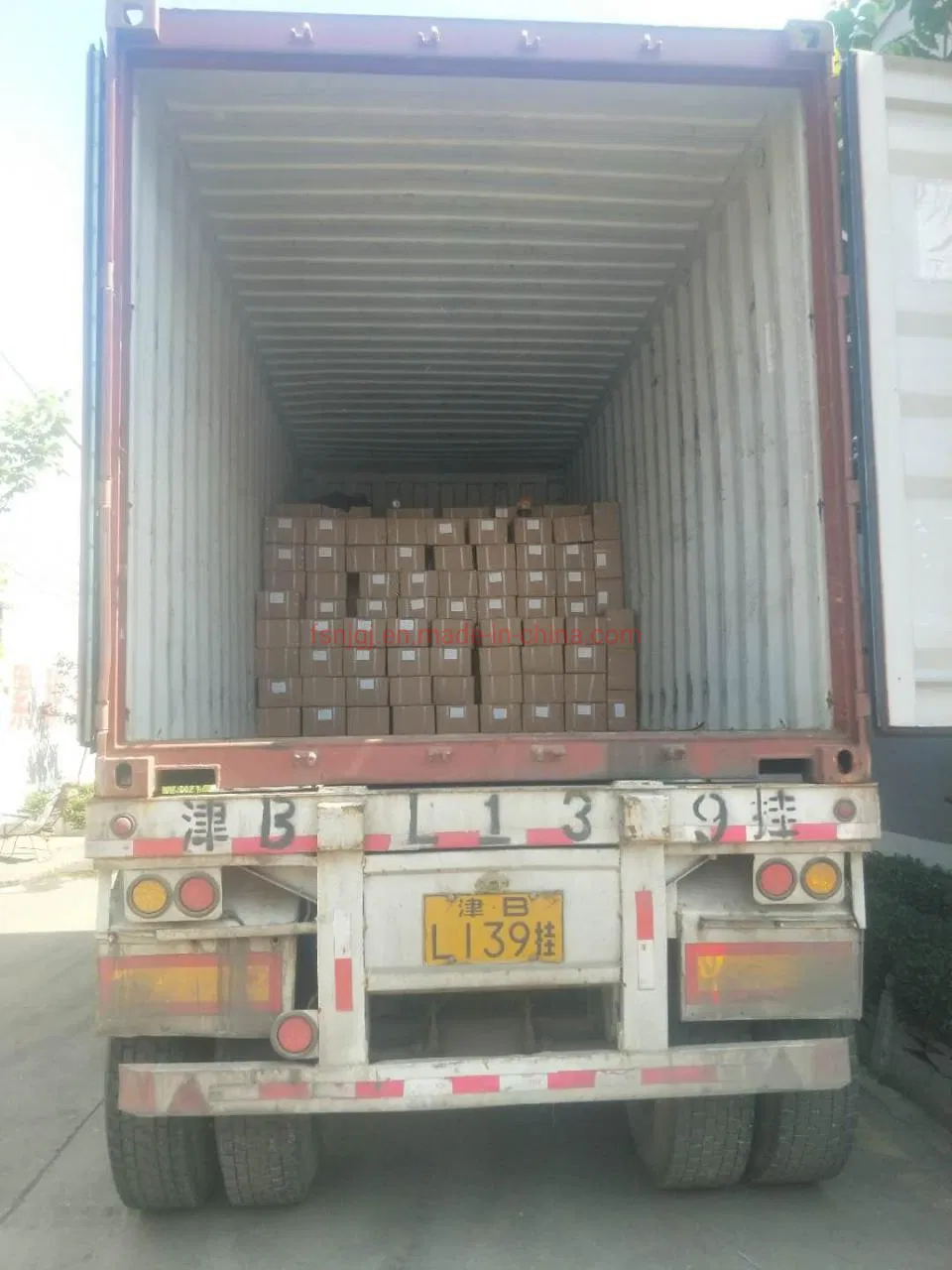

Goods Loading

FAQ:

Q1: Why choose FIX?

To provide our customers with first-class services in the supply of quality metal frame anchor minimizing costs.

1.1. Vision: We wishes to build successful relations with our partners and be their first choice as an expansion anchors supplier.

1.2. Mission: professional customer service, and innovation in technology.

Further more, we do not only offer you heavy duty fix anchor bolts with more reasonable quality and price than your expectations, but also would like to be your friend and to provide you market sales suggestion for your reference, if you have a better idea , please feel free to share with us.

Q2.How is quality ensured?

All our processes strictly adhere to ISO9001:2008 procedures. We have strict quality control from producing to delivery.Our company had strong technology support, We have cultivated a group of managers who are familiar with product quality , good at modern concept of management.

Q3:If you can not find on our website the product you need how to do?

You can send the pictures/photos and drawings of the products you need by email , we will check if we have them. We develop new models every month, Or you can send us samples by DHL/TNT, then we can develop the new model especially for you.

Q4:Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision?

Yes, we can, we can provide high precision parts and make the parts as your drawing.

Q5: How should I order and make payment?

By T/T, for samples 100% with the order; for production, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.

Q6: What's your Delivery Time?

Standard parts: 7-15days
Non-standard parts: 15-25days
We will make the delivery as soon as possible with the guarantee quality.

Q7:How to Custom-made (OEM/ODM)

If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.

Q8:Which mode of transport would be better?

In general, the production are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well.
