Dredge Pipeline Floating Gold Plain Suction Bucket Dredger
Features of Bucket Gold Suction Dredger1) ThDredge PipeCutter Suction DredgerLinee floDredger CutterSand Dredging Pumpating gold plain suction bucket dredger is designed according to your specific mining conditions and requirements.2) Dredging depth could be min 5 meters and max 30 meters.3) Process......
Send Inquiry
Product Description
Features of Bucket Gold Suction Dredger
1) ThDredge PipeCutter Suction DredgerLinee floDredger CutterSand Dredging Pumpating gold plain suction bucket dredger is designed according to your specific mining conditions and requirements.
2) Dredging depth could be min 5 meters and max 30 meters.
3) Processing capacity could be 50tph-400tph.
4) The chain bucket system digs the materials from river/sea bottom, convey it up and feed into the trommel.
5) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
6) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
7) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator with all batteries, cables and wires.
9) Gold refinery plant to make final product of gold bars.
10) Easy for installation, operation and maintaining.
11) One-Stop gold mining solutions from A to Z.
Specification of 8inch suction dredger
ModelMST300-BHD
Capacity2500m3/h
Pump size12inch
Sand output500m3/h
Dredging depth1.5-14m
Max Discharge distance1500m
L*B*H35*6.4*2m
Average draught1.1m
Dia. of in/out pipes350/300mm
Main engine895kw
Emergency genset50kw
Control systemSiemens PLC
Dia. Of cutter head2400mm
Cutter power140kw
Electrical systemSchneider
SteelCCSB standard

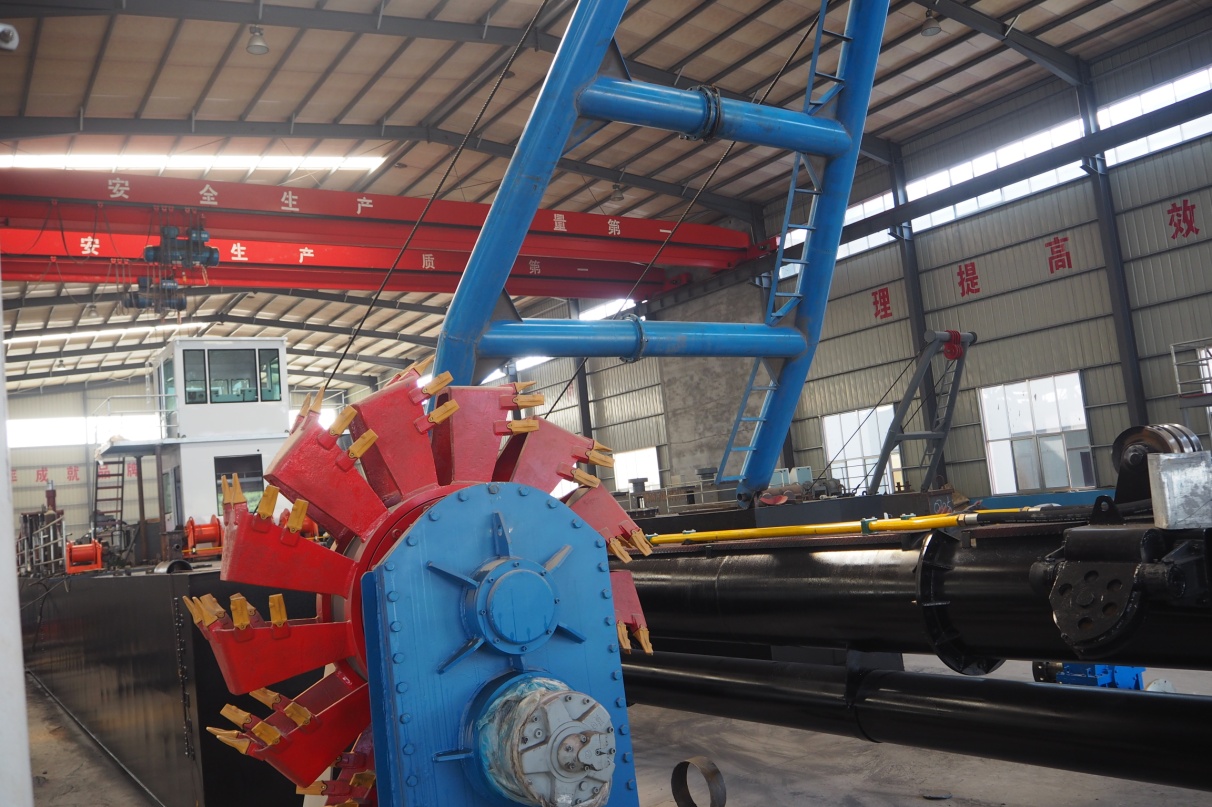

Bucket-Wheel cutter (1unit)
Model MST240
Diameter 2400mm
Cutter Power 140kW
Speed 18rpm
Bucket Qty 11
Bucket teeth 9/pcs
Weight 10,000kg
