Home > Products > Communication Equipment > PBX > PBX Wireless Trunk Line Pabx Tp832-424 Intercom System PBX

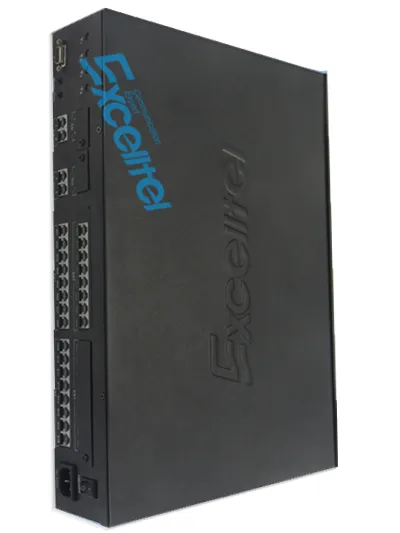

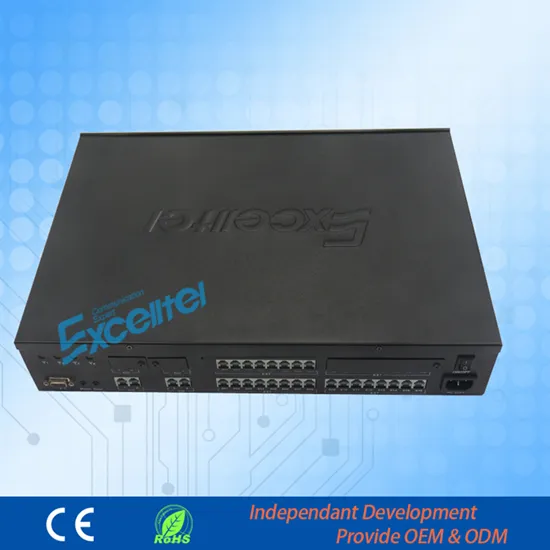

PBX Wireless Trunk Line Pabx Tp832-424 Intercom System PBX
Excelltel PBX Wireless trunk line pabx TP832-424 Intercom system metal coverModel: TP832-424 pcidCapacity:ExpandableFrom 4 to 8 CO line,16 to 32 Exts.2 CO line ports in per CO line card, 8 extensions line ports in per extension cardBasic functions:CapacityCO Capacity4Extension Capacity24Expandabil......
Send Inquiry
Product Description

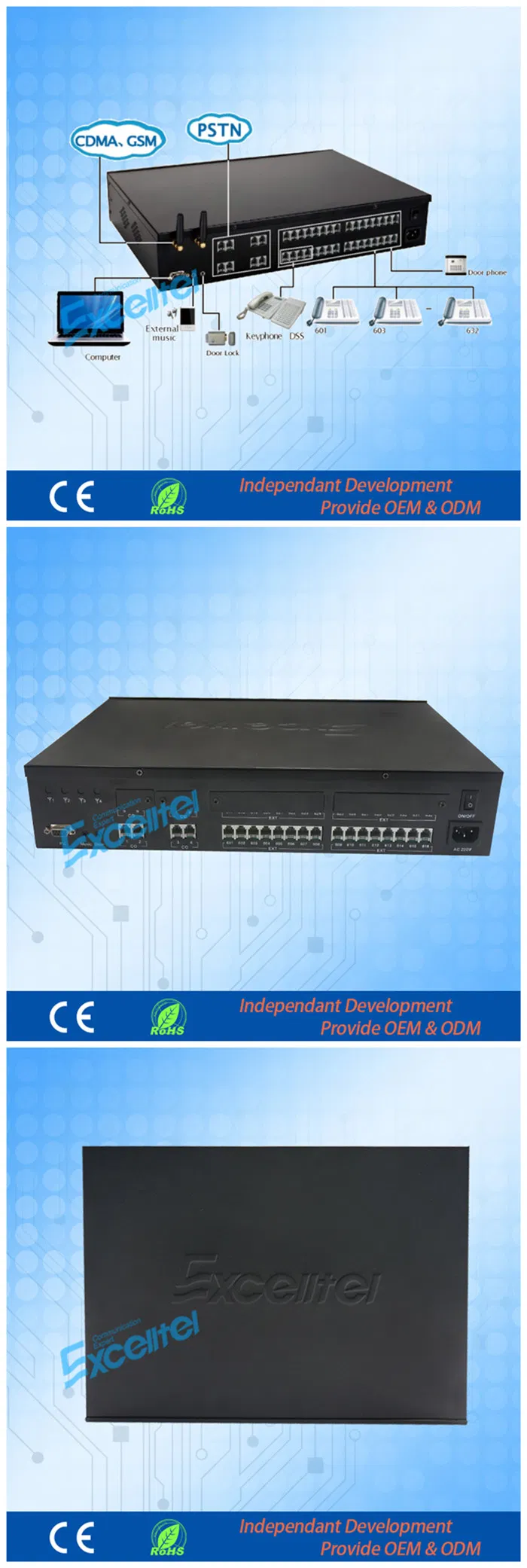

Excelltel PBX Wireless trunk line pabx TP832-424 Intercom system metal cover
Model: TP832-424 pcid
Capacity:
Expandable
From 4 to 8 CO line,16 to 32 Exts.
2 CO line ports in per CO line card, 8 extensions line ports in per extension card
Basic functions:
FAQ:
What is PBX?
PBX means Private Automatic Branch eXchange.
This is the electronic equipment for a number of telephone can share CO line and internal extension, and make internal call for free.
Our PBX also can support digital phone(what we means keyphone). But our PBX only can work with our digital phone.
Every extension can share the CO line to call out. Every extension can make intercom call for free.
If using out of 1 year, we still will provide technical support in any time,but maybe you should be pay for the maintenance fee.
Packing list:
Quantity: 2 Pcs/ Carton
Weight: 5.1-5.5Kgs/ Pc
Carton size: 49*28*41.5 CM
Package:
About shipping:
1)Worldwide shipping.
2)Orders processed timely after and the payment verification
About us:
Excelltel Technology Co., Ltd. is a professional PABX designer and manufacturer in China.
We work in PABX field over 15 years and our core business cover from R & D, production and marketing of different types of PABX.
Our PBX range multiple levels, including small & simple PABX, hotel PBX, GSM wireless PBX, Key phone hybrid PBX, large digital PBX etc... the C.O line range from 1-16, extension range from 6-128.
We also provide PBX accessories, like key phone, analog caller ID phone, headset phone, door phone, recording system etc...Till now Excelltel PABX already been exported to over 50 countries and won good reputation.
All of our PABX is originally designed by ourselves, SMT technology, our factory plant area is around 3000 sqm, 100 workers and office staff.
We have an excellent R&D team, most of whom work in telecommunication field over 15 years.
We make OEM/ODM for many oversea buyers and China dealers.
How to contact us?
Company name: Excelltel Technology CO., Ltd.
Address: No.6 Sigang Industrial Park, Beisha, Lishui, Nanhai Dist., Foshan, Guangdong, China.
Telephone: +86-757-86228930
Fax : +86-757-86228930-808
Website: excelltel.en.made-in-china.com
Model: TP832-424 pcid
Capacity:
Expandable
From 4 to 8 CO line,16 to 32 Exts.
2 CO line ports in per CO line card, 8 extensions line ports in per extension card
Basic functions:
| Capacity | CO Capacity | 4 |
| Extension Capacity | 24 | |
| Expandability | Yes | |
| No.of Port on C.O. Card | 2 | |
| No.of Port on EXT. Card | 8 | |
| Wireless Expansion Board | optional | |
| Wireless Trunk type(GSM/CDMA) | GSM/CDMA | |
| Max Wireless Trunk Lines | 1-4 | |
| External Hardware Interface | Keyphone Interface | optional |
| Door Phone | Yes | |
| Door Lock Opener | optional | |
| External Broadcasting Interface | Yes | |
| External Music On Holding | Yes | |
| RS232 Series Port | optional | |
| Backup Battery Interface | optional | |
| Operator | Keyphone Interface | optional |
| Operator/auto-attendent Mode | Yes | |
| Operator Designation | One/Two | |
| Day/Night Mode(Auto) | Yes | |
| Day/Night Mode(Manual) | Yes | |
| Music & Ringing | Recordable OGM(outgoing message) | |
| 20 seconds | optional | |
| 50 seconds | optional | |
| 60 seconds | Yes | |
| 90 seconds | optional | |
| Internal Music On Holding | Yes | |
| External Music On Holding | Yes | |
| Ring assignment(CO-Ext group) | Yes | |
| Ring Identify | Yes | |
| System CRBT | Yes | |
| Caller ID | External Caller ID | Yes |
| Intercom Caller ID | optional | |
| Transfer Caller ID | optional | |
| Call operation | Call Transfer | Yes |
| Call Forwarding | Yes | |
| Outgoing Call Transfer | Yes | |
| CO to CO Transfer | Yes | |
| Call Switch(pickup in conversation) | Yes | |
| Call Pickup(External call) | Yes | |
| Call Pickup(Internal call) | Yes | |
| CO Line Reservation(Call waiting) | Yes | |
| CO Line Booking | Yes | |
| Specific CO Line Dialing | Yes | |
| Call all Extensions | Yes | |
| Three way conference | Yes | |
| Do Not Disturb | Yes | |
| Auto/Manual Dial-Out Mode | Yes | |
| Internal Hot Line | Yes | |
| Internal Fast Dialing | Yes | |
| Abbreviated Dialing | Yes | |
| Auto IP Dialing | Yes | |
| Private password | Yes | |
| Redial in Indirect-dailing-out Mode | Yes | |
| Billing&Management Software | Billing Software(Include program) | optional |
| Reverse Polarity Signal | Yes | |
| Alarm Clock | Yes | |
| Other Feature | Call Restriction | Yes |
| Call Duration Control | Yes | |
| CO Line & Exts Monitor | Yes | |
| Exts Groups | Yes | |
| External Line Group | Yes | |
| Ringing Assignment | Yes | |
| Real Time Clock | Yes | |
| Intelligent Routing(LCR) | Yes | |
| Flexible Coding(Change Ext.No.) | Yes | |
| Automatic Ext. Reporting | Yes | |
| Flash Time Choice | Yes | |
| System Password | Yes | |
| Automatic C.O.Line Detection | optional | |
| Remote Programming | Yes | |
| Menory Protect While Power Off | Yes | |
| Multiple Communications Channel | 8 | |
| Fax Detection | optional | |
| Power Failure Transfer | Yes | |
| Lightning Protecting | Yes | |
| Housing Material | Metal | |
| Power Supply | Switch Power | Yes |
| Backup Battery Interface | optional |
FAQ:
What is PBX?
PBX means Private Automatic Branch eXchange.
This is the electronic equipment for a number of telephone can share CO line and internal extension, and make internal call for free.
What is CO line?
CO line means the telephone line from your local telecom company.What is Extensions?
Extension means ordinary telephone. Our PBX can compatible with analog telephone(with 2 wired). Our PBX also can support digital phone(what we means keyphone). But our PBX only can work with our digital phone.
How to install the PBX?
It is very easy. Connecting the CO line to the CO line port and telephone connect to the Ext. Port. Every extension can share the CO line to call out. Every extension can make intercom call for free.
How to program the PBX?
- You can use telephone to input the format to program the PBX according to the user manual.
- For some special model, it can support PC software. That means you can program the PBX by computer.
- If any program problem,you can contact with us directly. Our technician will help you remotely.
If using out of 1 year, we still will provide technical support in any time,but maybe you should be pay for the maintenance fee.

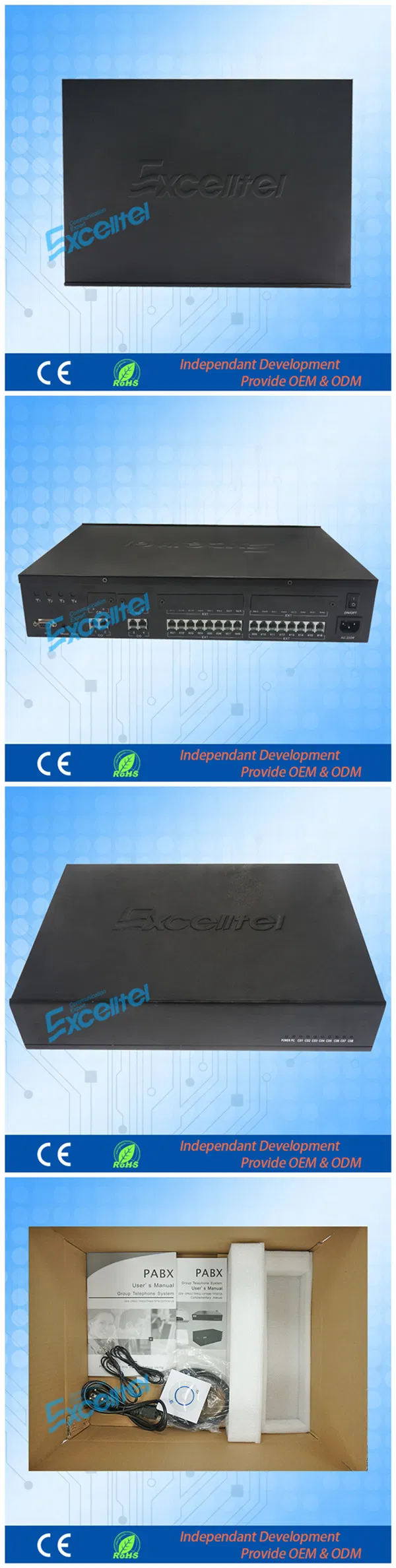

Packing list:
Quantity: 2 Pcs/ Carton
Weight: 5.1-5.5Kgs/ Pc
Carton size: 49*28*41.5 CM
Package:
| PBX | 1 | PC |
| Color box | 1 | PC |
| User manual | 2 | PCS |
| PC billing management CD | 1 | PC |
| Power plug(different standard) | 1 | PC |
| Audio cable | 2 | PCS |
About shipping:
1)Worldwide shipping.
2)Orders processed timely after and the payment verification
About us:
Excelltel Technology Co., Ltd. is a professional PABX designer and manufacturer in China.
We work in PABX field over 15 years and our core business cover from R & D, production and marketing of different types of PABX.
Our PBX range multiple levels, including small & simple PABX, hotel PBX, GSM wireless PBX, Key phone hybrid PBX, large digital PBX etc... the C.O line range from 1-16, extension range from 6-128.
We also provide PBX accessories, like key phone, analog caller ID phone, headset phone, door phone, recording system etc...Till now Excelltel PABX already been exported to over 50 countries and won good reputation.
All of our PABX is originally designed by ourselves, SMT technology, our factory plant area is around 3000 sqm, 100 workers and office staff.
We have an excellent R&D team, most of whom work in telecommunication field over 15 years.
We make OEM/ODM for many oversea buyers and China dealers.
How to contact us?
Company name: Excelltel Technology CO., Ltd.
Address: No.6 Sigang Industrial Park, Beisha, Lishui, Nanhai Dist., Foshan, Guangdong, China.
Telephone: +86-757-86228930
Fax : +86-757-86228930-808
Website: excelltel.en.made-in-china.com
